Oktava MKL-2500

Technical Specifications

Polar Pattern Cardioid
Freq. Response, Hz 20-20000
Output sensitivity, mV/Pa 13
Power Power Block supplied
Nominal Output Impedance 200ohm
Minimum load impedance

1 k ohm

Maximum SPL @ 1kHz > 135dB
Maximum Output Voltage 1.2V
Current Consumption 8mA
Temp. Range -35degrees C to +45 degrees C
Relative Humidity 85% (+25 degrees C)

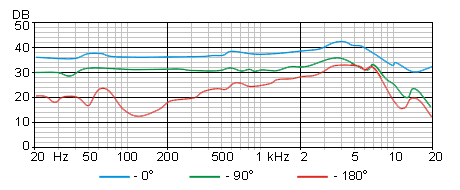

Fequency Response
